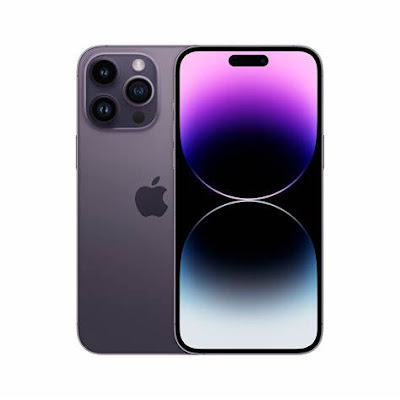

iPhone 14 Pro Max - Full phone specifications

iPhone 14 Pro Max - Full phone specifications



NETWORK

Technology         GSM / CDMA / HSPA / EVDO / LTE / 5G

2G bands            GSM 850 / 900 / 1800 / 1900 - SIM 1 & SIM 2 (dual-SIM)

               CDMA 800 / 1900

3G bands            HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100

               CDMA2000 1xEV-DO

4G bands            1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 30, 32, 34, 38, 39, 40, 41, 42, 46, 48, 66 - A2894, A2896

               1, 2, 3, 4, 5, 7, 8, 11, 12, 13, 14, 17, 18, 19, 20, 21, 25, 26, 28, 29, 30, 32, 34, 38, 39, 40, 41, 42, 46, 48, 53, 66, 71 - A2651, A2893

               1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 30, 32, 34, 38, 39, 40, 41, 42, 46, 48, 66 - A2895

5G bands            1, 2, 3, 5, 7, 8, 12, 20, 25, 26, 28, 30, 38, 40, 41, 48, 66, 70, 77, 78, 79 SA/NSA/Sub6 - A2894, A2896

               1, 2, 3, 5, 7, 8, 12, 14, 20, 25, 26, 28, 29, 30, 38, 40, 41, 48, 53, 66, 70, 71, 77, 78, 79, 258, 260, 261 SA/NSA/Sub6/mmWave - A2651

               1, 2, 3, 5, 7, 8, 12, 14, 20, 25, 26, 28, 29, 30, 38, 40, 41, 48, 53, 66, 70, 71, 77, 78, 79 SA/NSA/Sub6 - A2893

               1, 2, 3, 5, 7, 8, 12, 20, 25, 26, 28, 30, 38, 40, 41, 48, 66, 70, 77, 78, 79 SA/NSA/Sub6 - A2895

Speed   HSPA, LTE-A, 5G, EV-DO Rev.A 3.1 Mbps

LAUNCH

Announced        2022, September 07

Status   Available. Released 2022, September 16

BODY

Dimensions        160.7 x 77.6 x 7.9 mm (6.33 x 3.06 x 0.31 in)

Weight  240 g (8.47 oz)

Build      Glass front (Corning-made glass), glass back (Corning-made glass), stainless steel frame

SIM        Nano-SIM and eSIM - International

Dual eSIM with multiple numbers - USA

Dual SIM (Nano-SIM, dual stand-by) - China

               IP68 dust/water resistant (up to 6m for 30 min)

DISPLAY

Type      LTPO Super Retina XDR OLED, 120Hz, HDR10, Dolby Vision, 1000 nits (typ), 2000 nits (HBM)

Size        6.7 inches, 110.2 cm2 (~88.3% screen-to-body ratio)

Resolution          1290 x 2796 pixels, 19.5:9 ratio (~460 ppi density)

Protection          Ceramic Shield glass

               Always-On display

PLATFORM

OS          iOS 16, upgradable to iOS 17.1.1

Chipset Apple A16 Bionic (4 nm)

CPU       Hexa-core (2x3.46 GHz Everest + 4x2.02 GHz Sawtooth)

GPU       Apple GPU (5-core graphics)

MEMORY

Card slot              No

Internal    128GB 6GB RAM, 256GB 6GB RAM, 512GB 6GB RAM, 1TB 6GB RAM

               NVMe

MAIN CAMERA

Triple     48 MP, f/1.8, 24mm (wide), 1/1.28", 1.22µm, dual pixel PDAF, sensor-shift OIS

12 MP, f/2.8, 77mm (telephoto), 1/3.5", 1.0µm, PDAF, OIS, 3x optical zoom

12 MP, f/2.2, 13mm, 120˚ (ultrawide), 1/2.55", 1.4µm, dual pixel PDAF

TOF 3D LiDAR scanner (depth)

Features              Dual-LED dual-tone flash, HDR (photo/panorama)

Video    4K@24/25/30/60fps, 1080p@25/30/60/120/240fps, 10-bit HDR, Dolby Vision HDR (up to 60fps), ProRes, Cinematic mode (4K@24/30fps), stereo sound rec.

SELFIE CAMERA

Single    12 MP, f/1.9, 23mm (wide), 1/3.6", PDAF, OIS

SL 3D, (depth/biometrics sensor)

Features              HDR, Cinematic mode (4K@24/30fps)

Video    4K@24/25/30/60fps, 1080p@25/30/60/120fps, gyro-EIS

SOUND

Loudspeaker      Yes, with stereo speakers

3.5mm jack        No

COMMS

WLAN   Wi-Fi 802.11 a/b/g/n/ac/6, dual-band, hotspot

Bluetooth           5.3, A2DP, LE

Positioning         GPS (L1+L5), GLONASS, GALILEO, BDS, QZSS

NFC        Yes

Radio    No

USB       Lightning, USB 2.0
